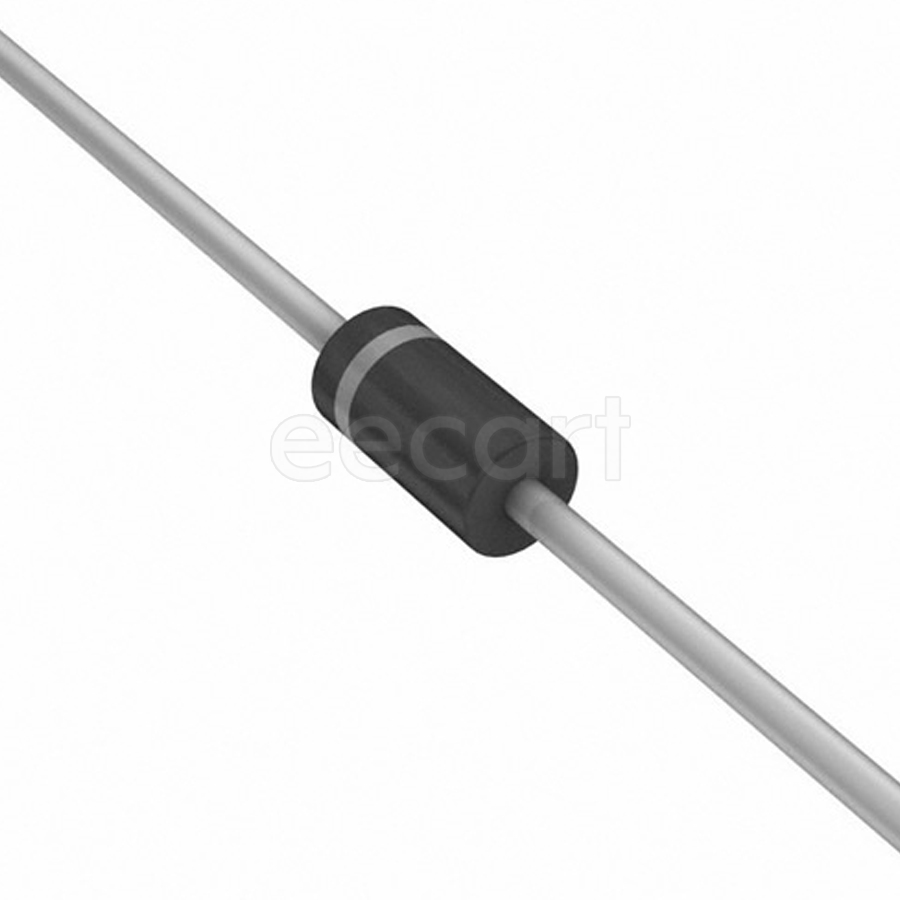

1N5819G
Manufacturer:
On Semiconductor
Mfr.Part #:
1N5819G
Datasheet:
Description:
Schottky Diodes DO-41 Through Hole Single Forward Current:1 A Forward Voltage:600 mV Max Repetitive Reverse Voltage (Vrrm):40 V Max Forward Surge Current (Ifsm):25 A
| Parameter | Value |
|---|---|
| Contact Plating | Tin |
| Lead Free | Lead Free |
| Current Rating | 1 A |
| Peak Non-Repetitive Surge Current | 25 A |
| Average Rectified Current | 1 A |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Max Reverse Leakage Current | 1 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Min Operating Temperature | -65 °C |
| Forward Current | 1 A |
| Diameter | 2.7 mm |
| Element Configuration | Single |
| Max Surge Current | 25 A |
| Height | 5.2 mm |
| Schedule B | 8541100080 |
| Output Current | 1 A |
| Voltage Rating (DC) | 40 V |
| Length | 5.1816 mm |
| Weight | 4.535924 g |
| Packaging | Bulk |
| Reverse Current | 1 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 40 V |
| Forward Voltage | 600 mV |
| Max Operating Temperature | 125 °C |
| Number of Pins | 2 |
| Halogen Free | Halogen Free |
| Width | 2.7 mm |
| Forward Surge Current (Ifsm) | 25 A |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Breakdown Voltage | 40 V |
| RoHS | Compliant |
Stock: 10583
Distributors
pcbx
pcbxUnit Price$0.14375
Ext.Price$0.14375
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14375 | $0.14375 |
| 10 | $0.11137 | $1.11370 |
| 50 | $0.11122 | $5.56100 |
| 100 | $0.11106 | $11.10600 |
| 500 | $0.09503 | $47.51500 |
| 1000 | $0.08737 | $87.37000 |
| 3000 | $0.08380 | $251.40000 |
| 5000 | $0.08037 | $401.85000 |
| 10000 | $0.07794 | $779.40000 |
| 30000 | $0.07588 | $2276.40000 |
| 50000 | $0.07388 | $3694.00000 |
